Product design | Eco-concept | User case
What:
The fog collector is designed to capture water from fog and collect it in a bottle for drinking water and other uses. It has three layers of mesh that maximize the ability to capture water droplets from the air. The fog collector also has a modular design, allowing multiple units to be connected together with snap-fits that can then be attached to various surfaces using carabiners.
The inner layers of mesh allow the fog droplets to collect into small rivulets that then drain downwards into a collecting bottle at the bottom of the unit. The modular design means that multiple fog collectors can be connected to scale up the amount of fog being collected and the total volume of water produced. The snap-fits and carabiners allow the fog collectors to be mounted on fences, trees, vehicles, backpacks, and more, providing a portable and flexible fog collection system.
The fog collector is able to produce potable water in moisture-rich but water-poor environments where fog is present. It provides a sustainable source of water by taking advantage from the abundant water present in fog. The simple, low-cost, and modular design makes it easy to construct and scale the fog collectors to the needs of individuals or communities.
product
︎︎︎
︎︎︎

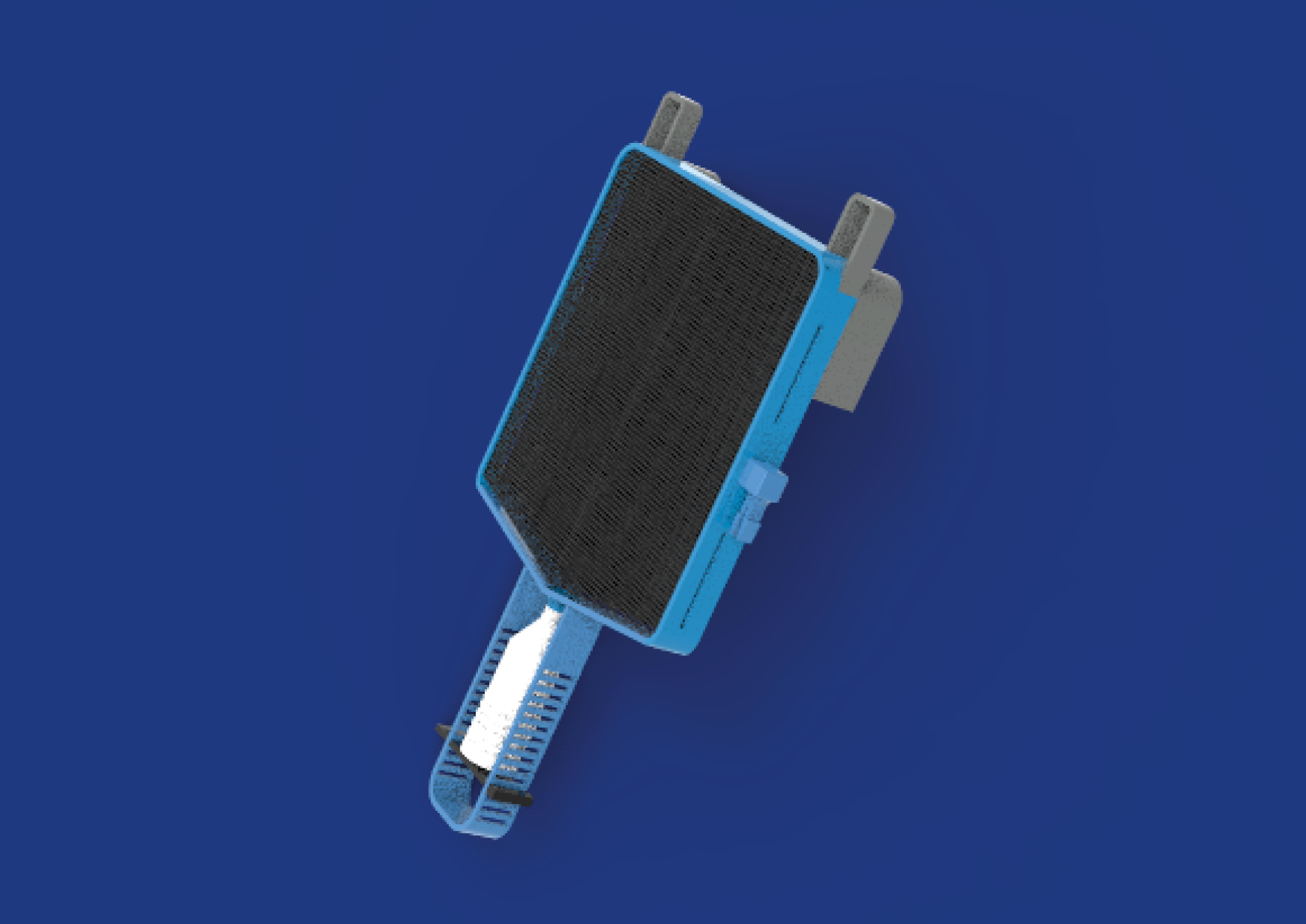

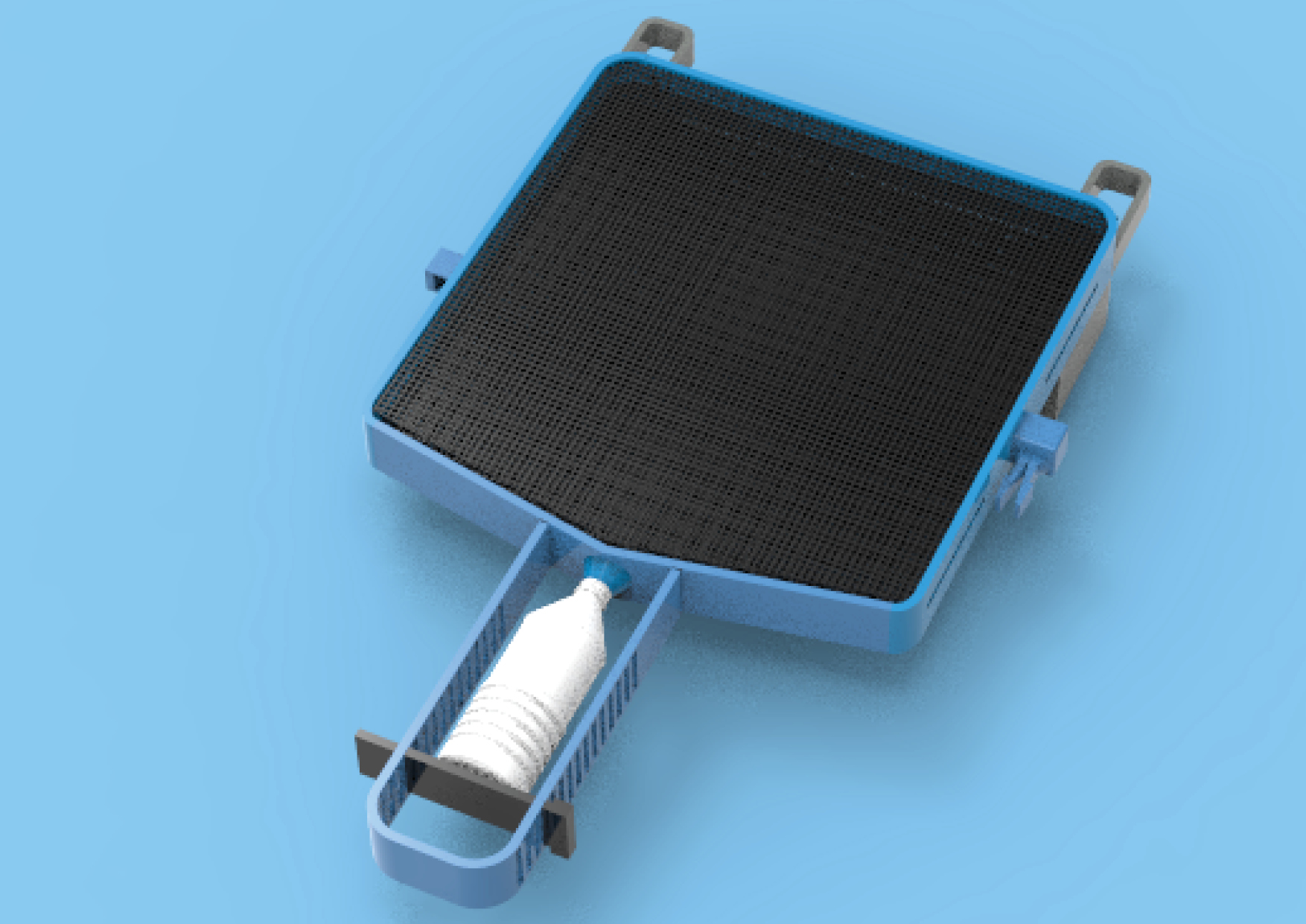

render
︎︎︎

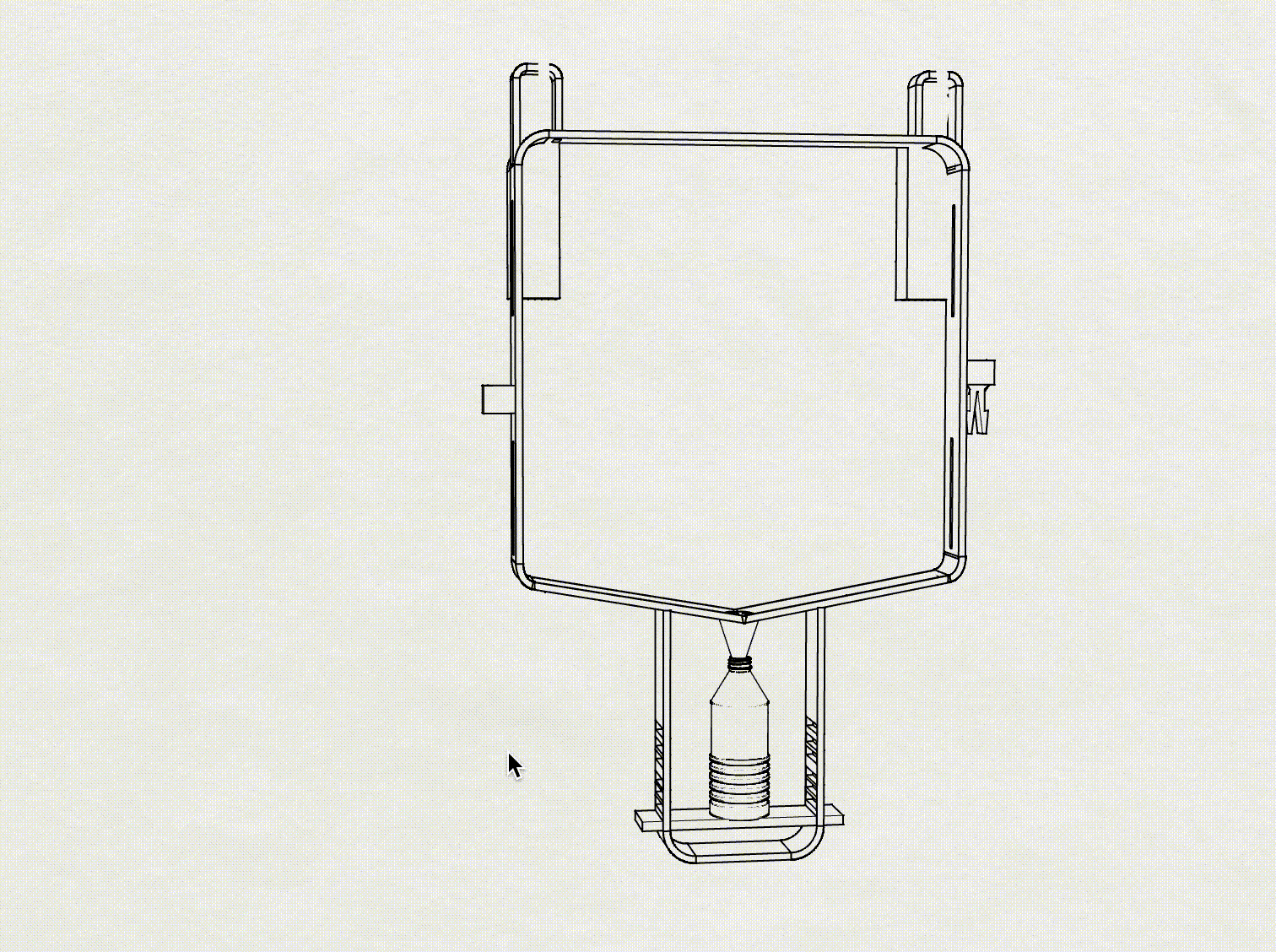

concept
︎︎︎
︎︎︎
modularity
︎︎︎
features
︎︎︎

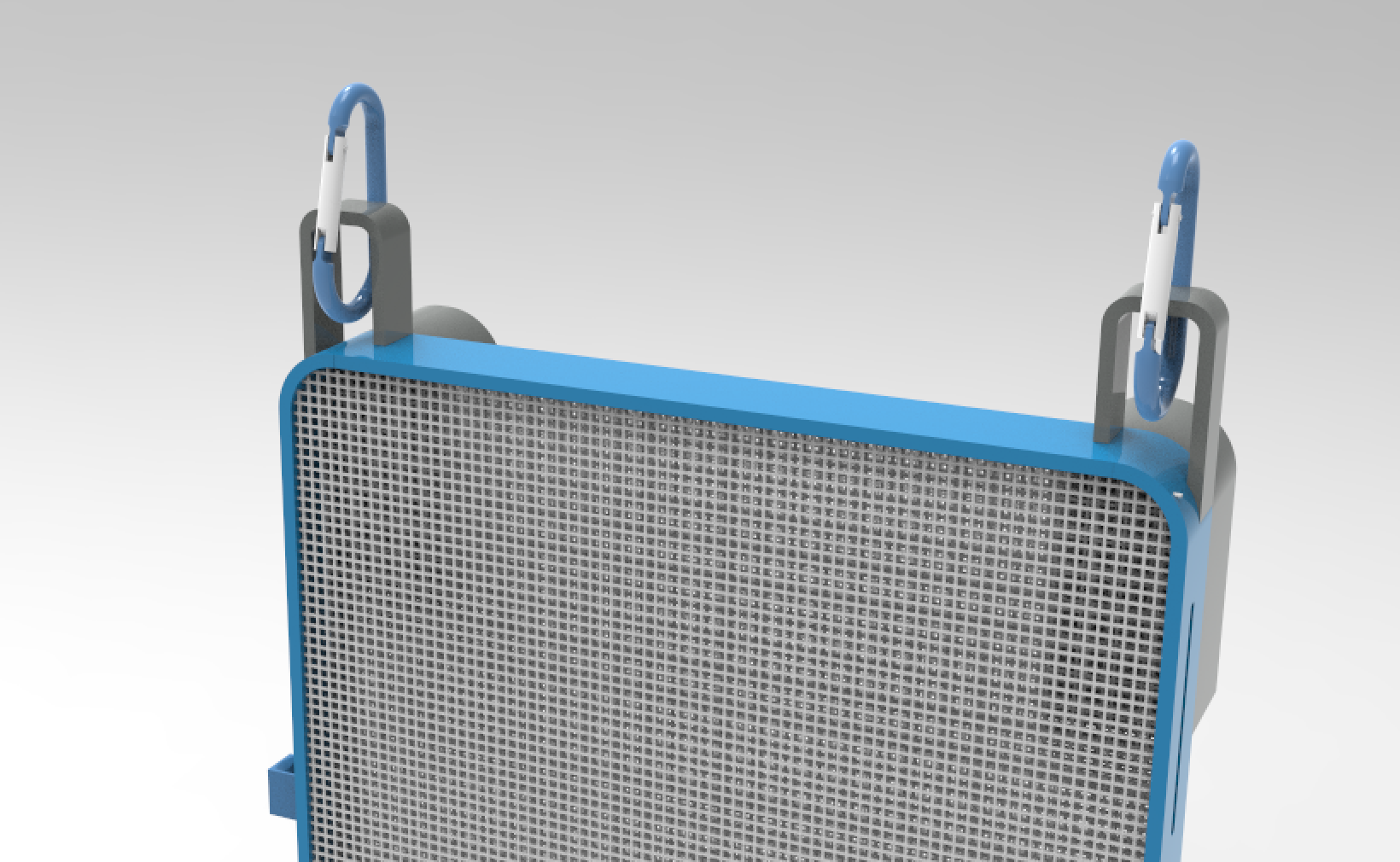

close up
︎︎︎
︎︎︎

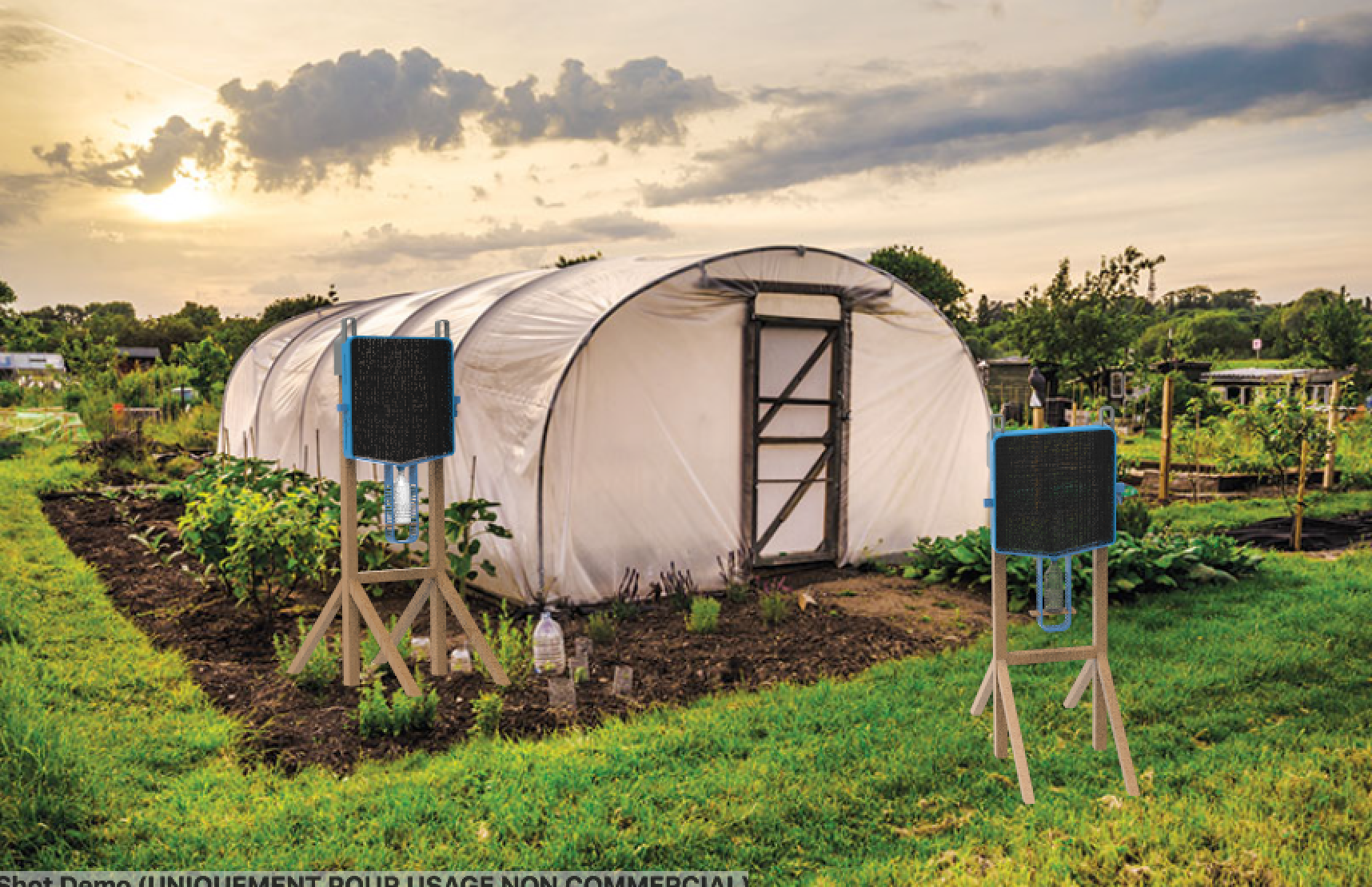

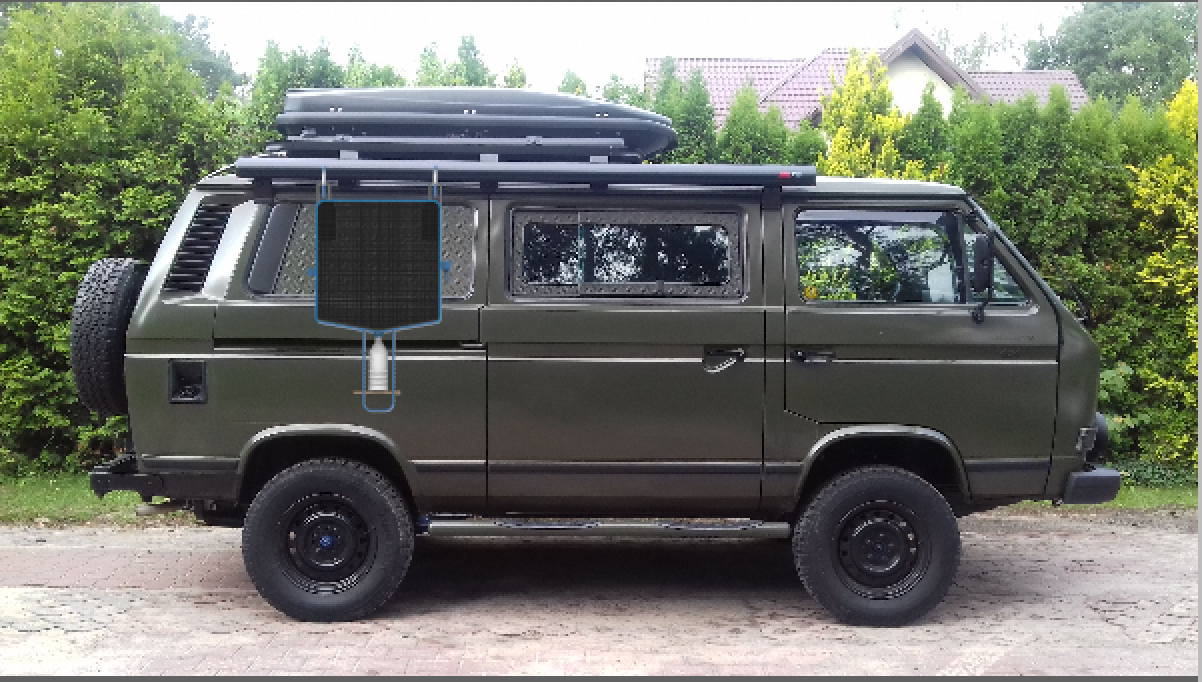

user case
︎︎︎
